5-Axis CNC Machining for Complext Parts

5-Axis CNC Machining for Complext Parts

Providing high-precision 5-axis machining capabilities for making complex geometries and intricate components with fast turnaround.

Your 24/7 Instant Quote:
Start a new CNC machining quote

STP | STEP | SLDPRT | IPT | PRT | SAT files
Upload Your Files
All uploads are secure and confidential.

What is
5-Axis CNC Machining

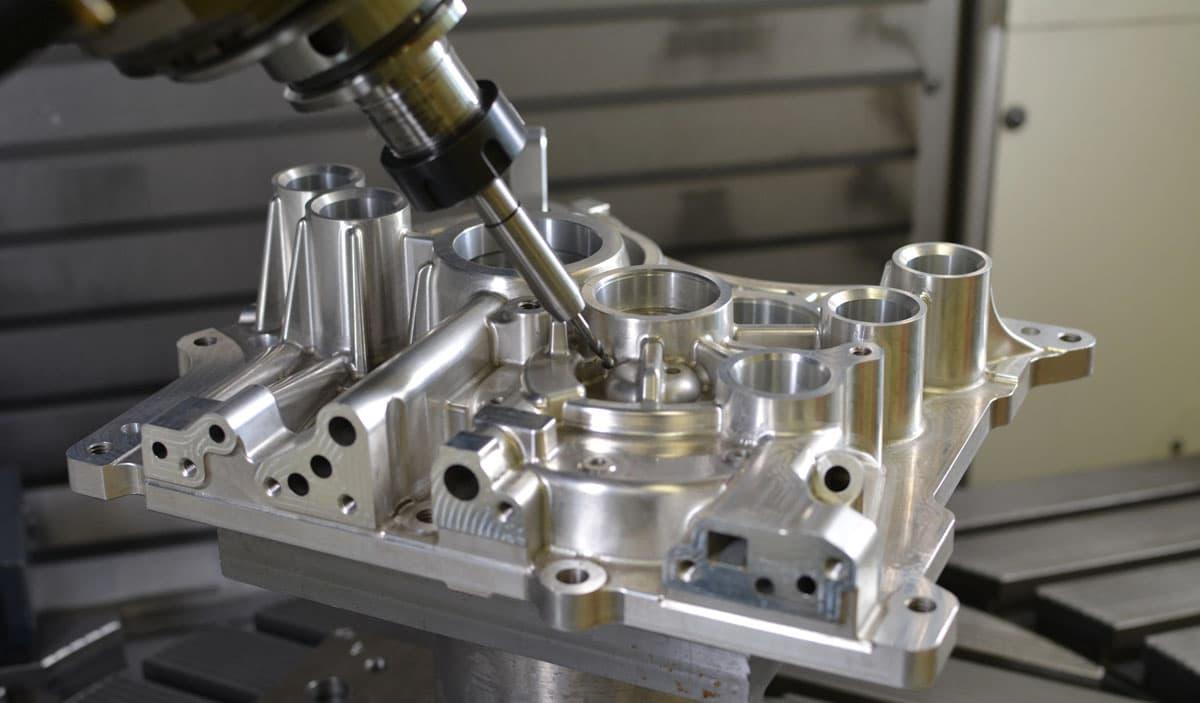

5-axis CNC machining requires moving a part or tool on five axes at the same time, in addition to the X, Y, and Z axes used in traditional three-axis machining. The addition of rotational axes A and B increases motion range and cutting angle flexibility, allowing for more precise fabrication of complex pieces. It gains access to areas inaccessible with standard procedures by tilting the tool or workpiece, reducing setup time and secondary processes for increased efficiency.

5-axis milling comes with multiple benefits. It allows for the efficient and accurate manufacturing of precise geometries and complex shapes, saving setup times and production costs. Also, it improves surface finish and part quality by maintaining appropriate cutting angles, which result in smoother surfaces and tighter tolerances. Its adaptability extends to machining diverse materials, broadening its application possibilities in industries such as aerospace, automotive, and medical, making it a vital tool for high-precision component manufacturing.

Level-up mold design workflows

5-axis machining minimizes manual intervention while providing greater accuracy, speed, and efficiency. There is a significant reduction in manufacturing time due to the possibility of fewer setups, faster prototyping, and improved product quality with consistent outcomes.
How To Estimate The Cost Of Making A Injecting Molding Tool ?
Complex Geometry

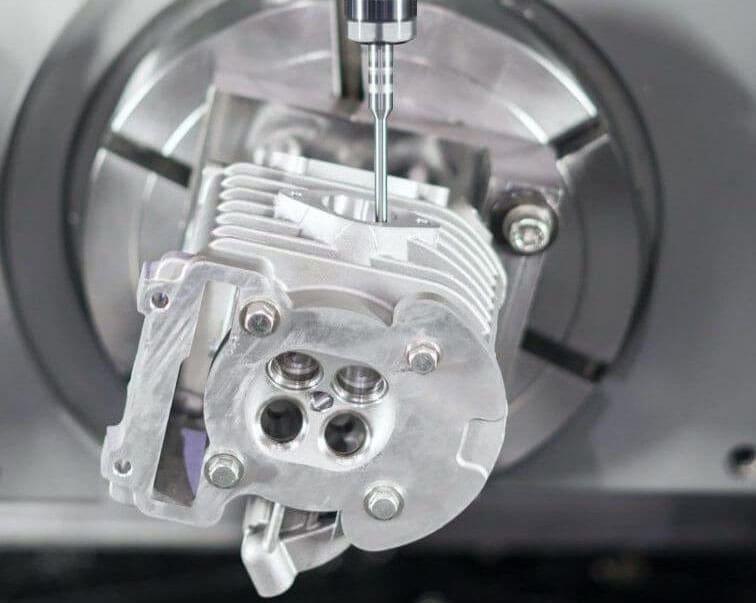

Five-axis machining reduces the need for several setups and improves precision by moving the tool along five axes, enabling the fabrication of complicated and sophisticated objects.
How To Estimate The Cost Of Making A Injecting Molding Tool ?
Reduced Setup Time
It eliminates the need for multiple setups by allowing for the machining of complex forms in a single run, considerably lowering overall production time and enhancing efficiency.
How To Estimate The Cost Of Making A Injecting Molding Tool ?
Precision and Accuracy
5-axis machining enables for simultaneous movement along five axes, resulting in intricate geometries produced with greater precision and fewer errors, which is critical for complex and high-tolerance items.

Applications of 5-axis milling

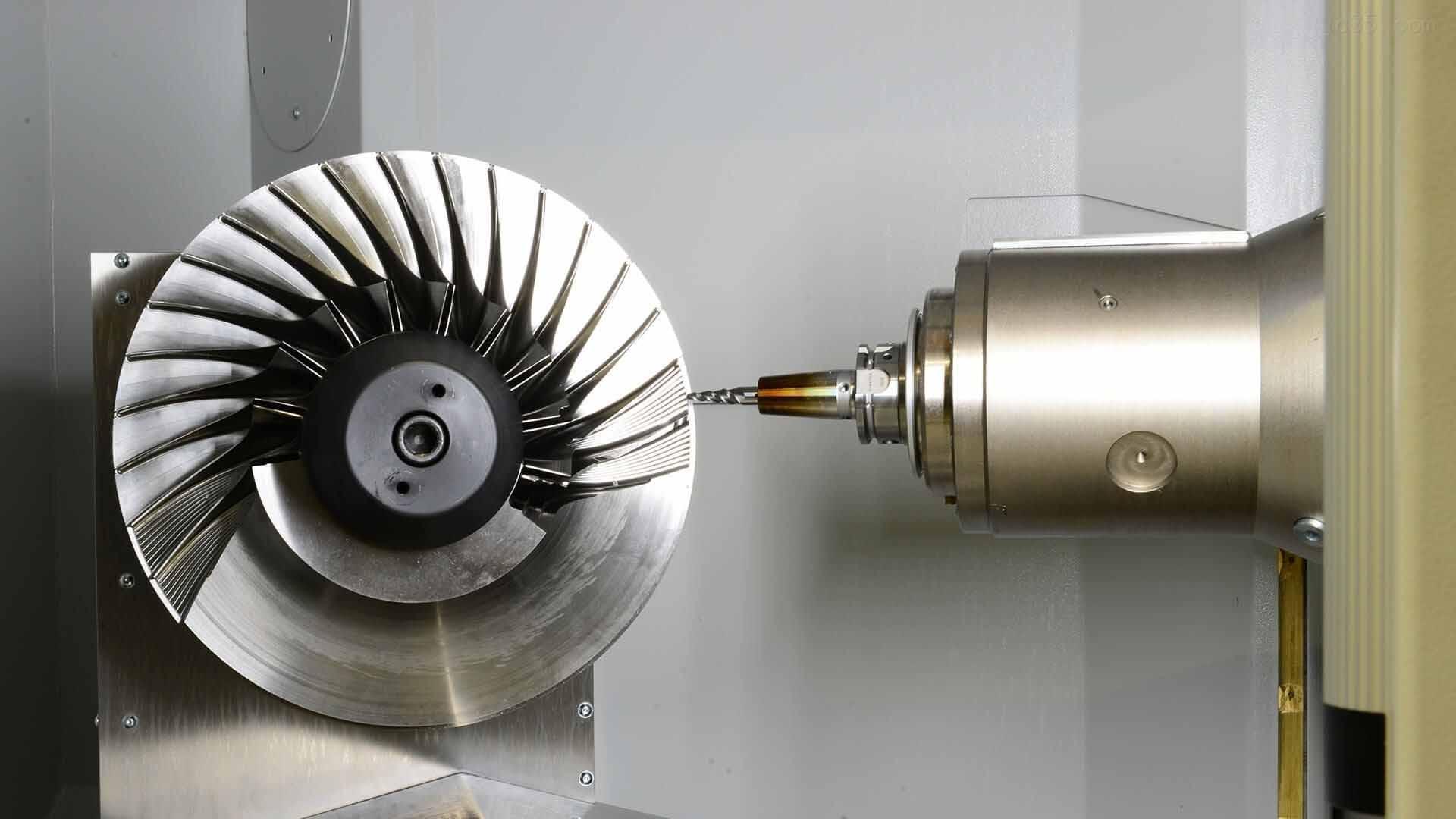

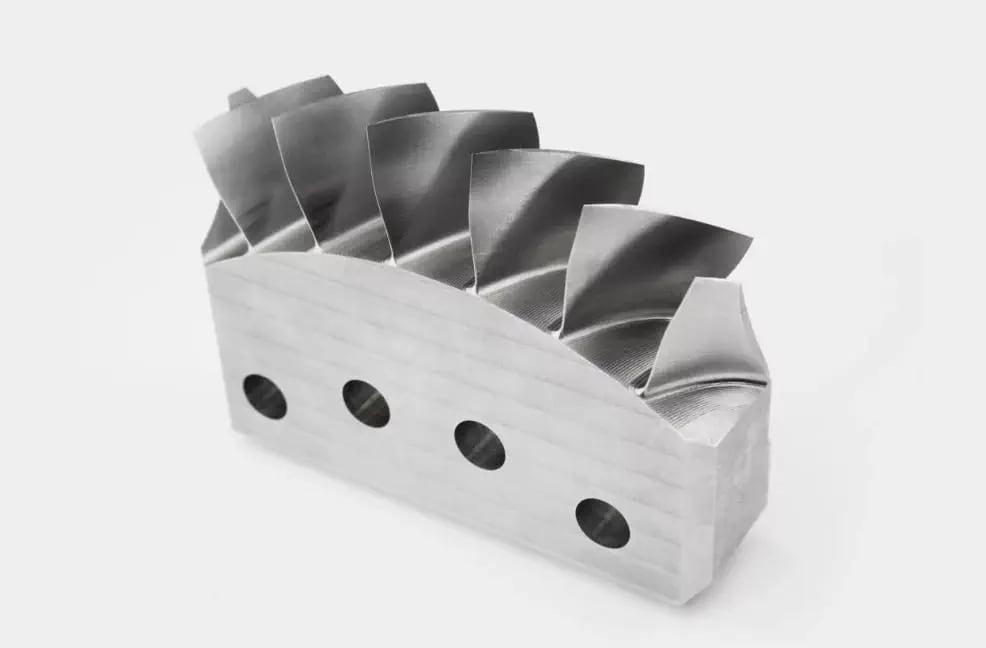

Five-axis milling is used in many different sectors where accuracy and intricate geometries are crucial. It is used in aerospace to create complex turbine blades and aircraft parts. It is used in automotive for engine components, dies, and molds. Medical uses it for implants and prosthesis. It's also essential for the fabrication of high-performance parts for the electronics and defense industries, mold building, and marine manufacturing.

Why tolerance and accuracy matters to CNC parts

Accurate tolerance and precision are crucial for CNC components because they provide functional integrity, assembly compatibility, and consistent performance. Tight tolerances ensure that parts fit together effortlessly, reducing errors and improving reliability. Precision machining guarantees that each component perfectly fulfills the design parameters, reducing rework, increasing efficiency, and maintaining the highest quality standards in production operations. By LUSHI you can achieve the tightest tolerance within 0.002mm.

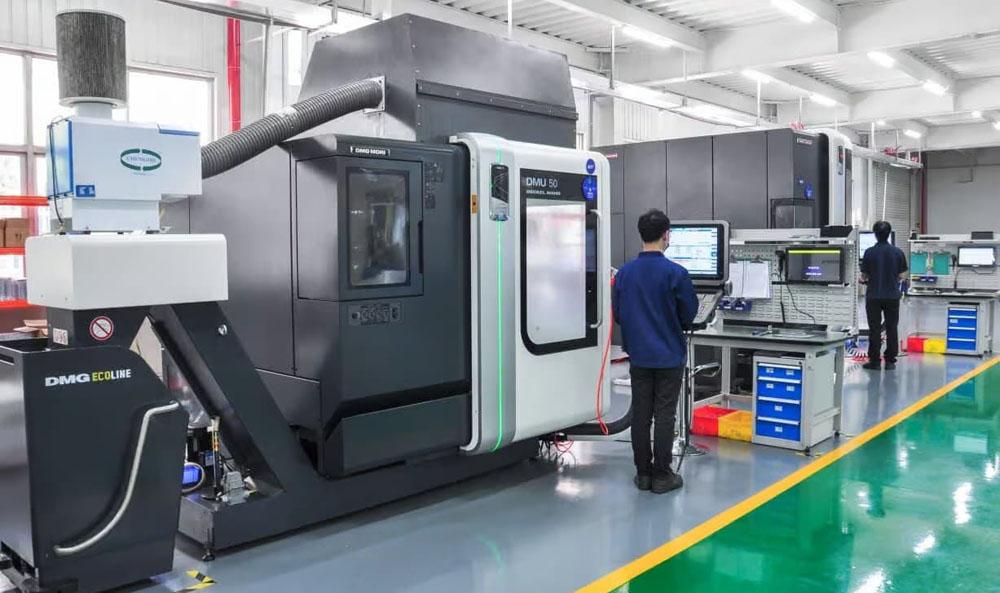

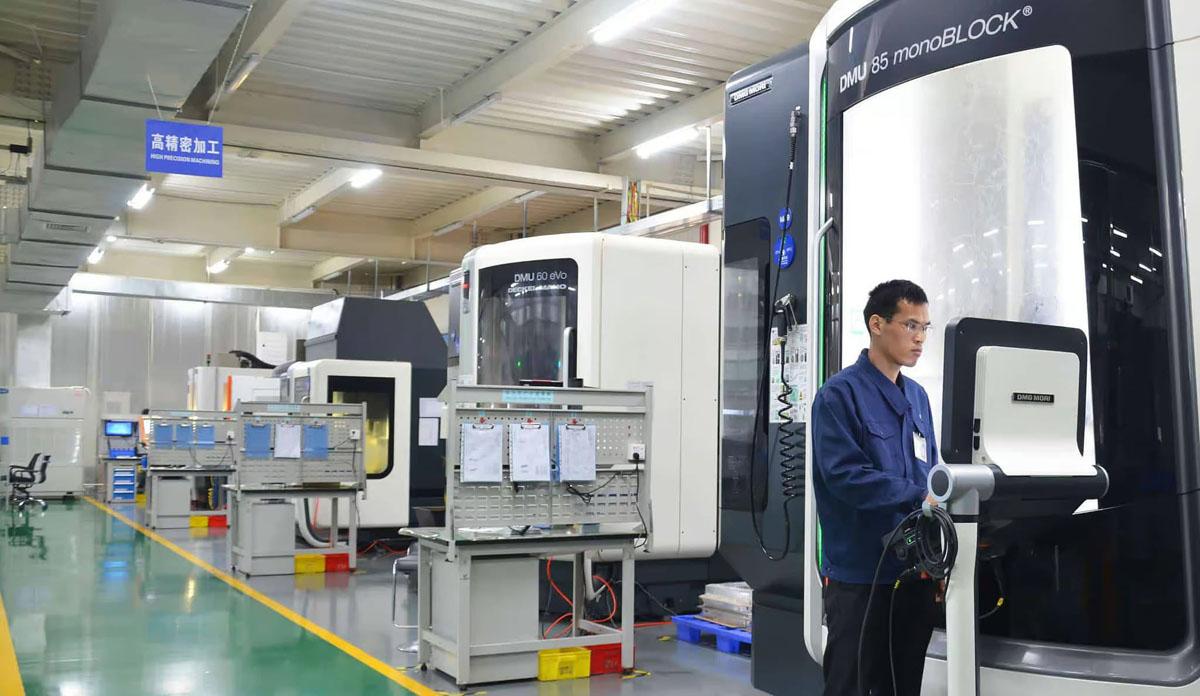

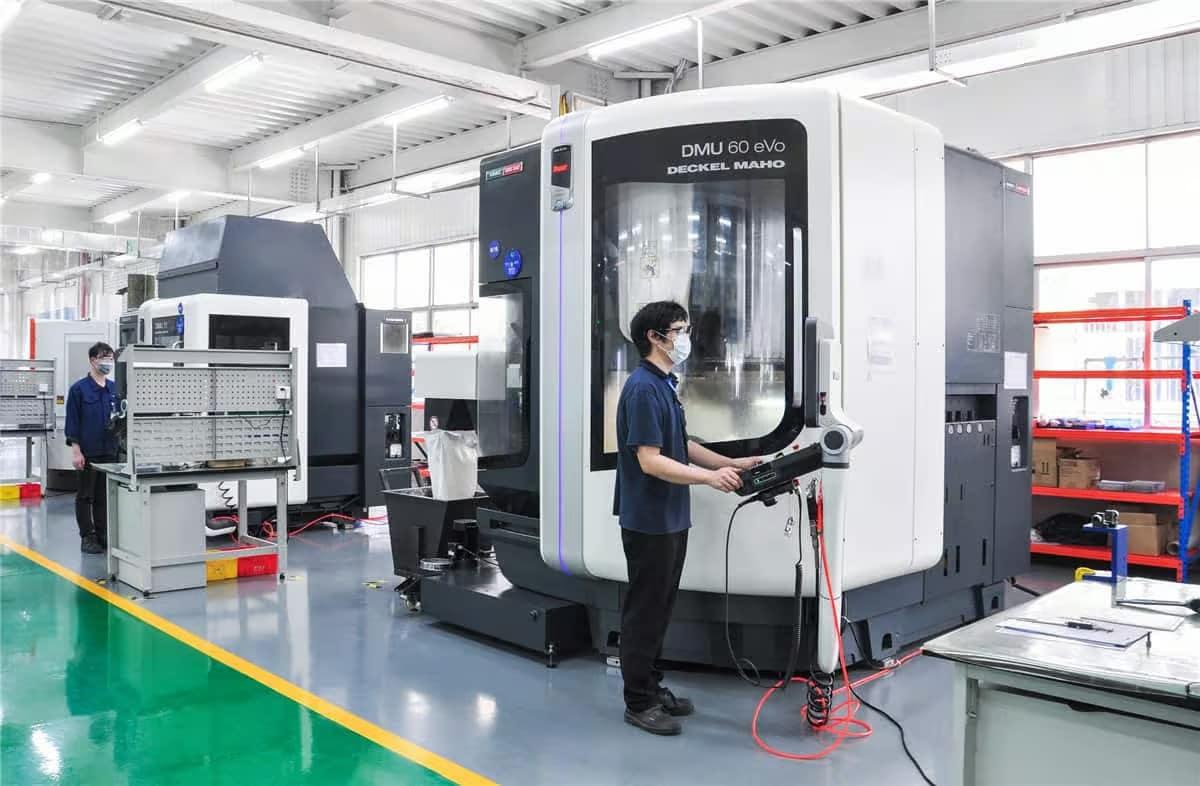

Our 5-Axia CNC Machining Shop in China delivers high quality precision parts

How To Estimate The Cost Of Making A Injecting Molding Tool ?
How To Estimate The Cost Of Making A Injecting Molding Tool ?
How To Estimate The Cost Of Making A Injecting Molding Tool ?

Get in touch with us and start project right now !

Your 24/7 Instant Quote
Upload files online or send us email.

Commonly materials for custom CNC machined parts

Aluminum Alloys

Aluminium alloys are highly machinable due to their lightweight, great thermal conductivity, and low melting point, making them perfect for CNC machining.
Learn more

Tool Steel

Tool steel for machined parts has great hardness, wear resistance, toughness, and thermal conductivity, making it perfect for precise cutting, drilling, and shaping of metal parts.
Learn more

Stainless Steel

Stainless steel is corrosion resistant, robust, and heat treatable, making it excellent for CNC machining. Its hardness and toughness present problems, yet they result in accurate, high-quality components.
Learn more

Brass Alloys

Brass alloys have outstanding machinability, high thermal conductivity, corrosion resistance, and a golden look, making them perfect for precision parts.
Learn more

Bronze Alloys

Bronze alloys provide great machinability for CNC machining, with high strength, corrosion resistance, and thermal conductivity, making them perfect for producing complicated parts.
Learn more

Copper Alloys

Copper alloys have strong electrical conductivity, corrosion resistance, and thermal conductivity, making them perfect for complicated parts that require the highest level of precision.
Learn more

Titanium Alloys

With high strength-to-weight ratios, corrosion resistance, and biocompatibility, makes Titanium excellent for the part making in aerospace, medical, and automotive industries.
Learn more

Available surface finishes of cnc machined parts

For CNC machined parts, LUSHI provides a variety of surface treatments, such as polished, smooth surfaces, textured finishes for aesthetics or grip, and custom treatments made to fit particular application requirements.

01

As Machined

Without further polishing or smoothing treatments, the surface finishing of as machined items usually shows tool marks and roughness straight out of the machining process.

02

Anodizing

Metals are improved by anodizing by forming a coating of protective oxide. It increases durability, resistance to corrosion, and offers a variety of color choices for aesthetic purposes.

03

Alodine Coating

Alodine coating, sometimes referred to as chromate conversion coating, improves paint adhesion and offers corrosion protection for aluminum surfaces, extending their lifespan.

04

Black Oxide

Through a chemical conversion process, a black oxide layer is formed on metal surfaces to provide corrosion resistance and a decorative black look. This technique is known as black oxide surface finishing.

05

Passivation

By the chemical process of passivation, contaminants are removed from the surface of stainless steel, increasing its resistance to corrosion and creating a layer of protective oxide.

06

Electroplating

By using an electrolytic technique to deposit a coating of metal onto a substrate, electroplating improves surface characteristics like conductivity, appearance, and resistance to corrosion.

07

Powder Coating

A dry powder is applied electrostatically to a surface via powder coating, which produces a heat-cured, aesthetically pleasing, and long-lasting finish with a range of color possibilities.

08

Tumbling

In order to smooth surfaces and get rid of burrs, pieces or materials are tumbled in a vibratory tub or revolving barrel filled with abrasives or polishing media.

09

Polishing

Polishing is a surface finishing technique that produces a bright, reflecting finish by smoothing and improving the appearance of a surface using abrasive materials.

10

Bead Blasting

Using compressed air, bead blasting removes coatings, corrosion, and other defects from a surface while producing a matte or textured finish.

Precision CNC Machining
for Custom Part Manufacturing

CNC Milling

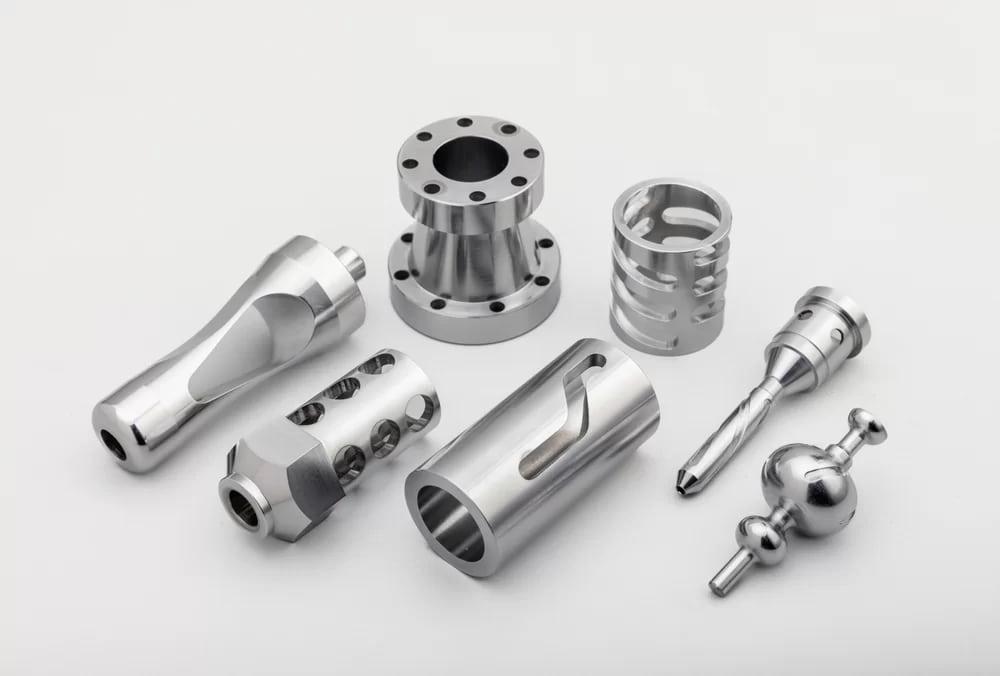

CNC milling produces precise CNC machined parts by removing material with rotating cutting tools. It's used in automotive, aerospace, and medical industries for creating components, prototypes, and custom parts with accuracy and repeatability.

3d metal printing materials

CNC Turning

High-precision components required for industrial applications are delivered by custom CNC turning. It guarantees precise dimensions and complex shapes, making it perfect for the automotive, aerospace, and medical industries.

3d metal printing materials

5-Axis Machining

5-axis machining gives precision and flexibility for complicated geometries, which are critical in the aerospace, automotive, and medical industries. This method increases efficiency, lowers setup time, and produces higher surface finishes.

3d metal printing materials

Wire-Cut EDM

Wire-Cut EDM is used to produce precision products with complex forms and close tolerances. Its industrial uses include aerospace, automotive, and medical devices, which require great accuracy and precise detail.

3d metal printing materials

Finishes

Finishing CNC machined parts improves both functioning and aesthetics, with processes such as anodizing for corrosion resistance, polishing for smooth surfaces, and painting for visual appeal. These finishes provide longevity, precision.

3d metal printing materials
