Powder bed fusion is one of the most commonly used 3D printing technologies for industrial additive manufacturing. PBF can be used to make strong and durable industrial parts, whether metal or plastic. PBF technology can be used to obtain high-performance end parts, but not all materials are compatible.
There are several technologies in the PBF family, and each is unique in its own way. The two most often used of these are Electron Beam Melting (EBM) and Laser Powder Bed Fusion (L-PBF). While EBM strikes the powder bed with an electron beam for the same goal, L-PBF uses a high-power laser to melt and fuse the powder particles. PBF technologies also include other variations such as Selective Laser Melting (SLM) and Sintering SLS as well as Direct Metal Laser Sintering (DMLS). Based on the particular requirements of the part to be created, each of these procedures is selected, each offering an own set of benefits. They are all widely utilized across a wide range of industries, designing and paying meticulous attention to detail in everything from lightweight, very durable aviation components to personalized medical implants.
How Does Powder Bed Fusion Work?

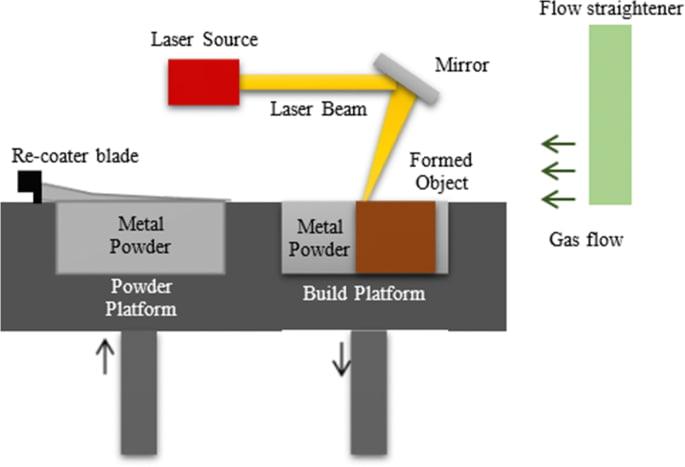

Powder Bed Fusion (PBF) is a type of additive manufacturing technology that uses either a laser or electron beam to melt and fuse material powders together. The build plate is covered with a thin layer of metal or polymer powder as part of the procedure. The material particles on the bed are then selectively melted and fused by means of a heat source (an electron beam or laser) that scans the surface in accordance with the CAD model that was created. The build plate then descends, and a fresh coating of powder is applied on top. This process continues, layer by layer, until the entire part is built.
Computer-Aided Design (CAD) software is used to finalize the blueprint for the planned product during the design process. After that, the CAD design is transformed into a file type that the Powder Bed Fusion (PBF) machine can understand, usually a.stl file. This is accomplished by dividing the design into several 2D cross-sectional layers, each of which represents a higher layer of the finished product. After the preparation is finished, the PBF machine uses a recoater blade to evenly disperse a fine layer of metal or polymer powder on the build platform, starting the printing process. A heat source is utilized to melt and fuse the powder in accordance with the design specifications. This process continues layer by layer until the object is fully produced. After a layer solidifies, the platform lowers and a fresh layer of powder is applied. The product is printed, let to cool, and then separated from the excess powder, which is either brushed off or removed via a blasting procedure. The need for additional post-production procedures like machine finishing, milling, or grinding may arise based on how stringent the project requirements are.
Why Use Powder Bed Fusion?
PBF offers metal and polymer additive manufacturing a number of noteworthy benefits.
Precision and quality: When compared to other additive manufacturing methods, PBF produces products with exceptional surface finish and high dimensional accuracy. This makes it appropriate for uses where accuracy is essential, including in aeronautical components or medical implants.
Intricate Geometries: PBF makes it possible to create intricate geometries that would not be possible with conventional manufacturing techniques. PBF's additive nature allows you to design parts with complex channels, undercuts, and interior structures.
Decreased cost and waste: PBF, a form of additive manufacturing, employs only the materials required to construct the part, therefore minimizing wasteful material consumption. The capacity to manufacture intricate structures in a single build also lowers the need for assembly, which lowers the overall cost of manufacturing.
Functionality: Functional prototyping and the fabrication of end-use components are made possible by PBF's ability to develop parts with material qualities that are comparable to those of traditionally manufactured parts.
What Are the Different Types of Powder Bed Fusion?
At the heart of these advanced technologies lies three pivotal sub-technologies, namely Selective Laser Sintering (SLS), Laser Powder Bed Fusion (LPBF), and Electron Beam Melting (EBM). Each of these types demonstrates unique methodologies and applications that allow for a varied range of industrial applications.
Laser Powder Bed Fusion
Laser Powder Bed Fusion (LPBF), often simply referred to as metal 3D printing, uses a laser to selectively melt layers of powdered material, thus creating extremely precise and complex metal parts or assemblies - layer by layer. The applications span across various sectors including medical devices where implant devices or dental appliances are created, aerospace with lightweight, high-strength parts, and even the automotive industry in the production of highly performing prototypes.
Selective Laser Melting (SLM)
Selective Laser Melting (SLM) and Direct Metal Laser Sintering (DMLS) are both technologies used within Laser Powder Bed Fusion (LPBF) process class for manufacturing components. They are among the most common techniques used in the field of metal additive manufacturing.
Selective Laser Melting is a powder bed fusion method that uses a high-energy laser beam to fully melt and fuse metallic powders into a solid part. The term "melting" signifies that the powdered metal material is completely melted to form a homogeneous material. SLM enables the production of highly complex, near net-shape parts directly from 3D CAD data without needing any molds or tooling. It's commonly used for a wide array of metals, including stainless steel, aluminium, titanium, and others.
Selective Laser Sintering (SLS)
Selective Laser Sintering (SLS) utilizes a high-power laser to fuse small particles of polymer, metal, ceramic, or glass powders into a mass that achieves the desired 3D shape. It is highly favored for its ability to produce parts with excellent mechanical properties, great detail resolution, and nearly unrestricted geometric complexity. Industries such as medical, automotive, and aerospace have particularly benefited from SLS as it allows for this high dimensional accuracy in manufacturing alongside rapid prototyping capabilities.
Direct Metal Laser Sintering (DMLS)
Direct Metal Laser Sintering (DMLS), on the other hand, is another powder bed fusion process where metallic powders are locally sintered not fully melted by a laser to form parts, very similar to SLM mothode. The powdered metal is locally heated to a temperature below its melting point, but high enough to provoke diffusion of the particles to each other, creating a solid part.
Difference between SLM and DMLS
While both SLM and DMLS are used to create parts out from metal powder, the main difference between these two lies in their process: SLM fully melts the metal powder while DMLS sinters it, leading to slightly different mechanical and microstructural properties. In some contexts and regions, the terms SLM and DMLS have been used interchangeably, though their technical definitions imply these differences. Despite these distinctions, the resulting parts from both processes are often of high detail, complex design and excellent strength, making them useful technologies for numerous applications from prototyping to production in various industries.
Electron Beam Melting (EBM)
Electron Beam Melting (EBM) is a subcatology of PBF that employs a high-energy electron beam to melt metal powder or wire on a layer-by-layer basis, thus printing 3D solid metallic structures. Known for its profound contributions to the production of dense and stress-free parts with material properties better than cast and comparable to wrought material. Among its versatile applications, it remarkably supports the medical field in the manufacturing of custom orthopedic implants, and the aerospace sector in the creation of specialized parts that can withstand high-temperature environments.
What Postprocessing Is Required?
Even though modern technology may achieve complex geometries, post-processing measures are still necessary to ensure that parts made with these techniques are flawless. Part removal is one of these procedures; to remove the printed item from the powder bed without damaging it, expertly employ specialized equipment. The next step is to remove any remaining powder from the part's surface. This can be done in a variety of ways, from air blasting or ultrasonic baths to manual brushing and compressed air blowing.
In addition, a lot of parts made with Powder Bed Fusion (PBF) require heat treatments after production to reduce the stresses brought on by the quick cooling during fabrication. Annealing and tempering are two examples of such treatments that can be used to minimize distortion and improve mechanical properties. Depending on the intended use of the part, the printed parts usually come out of the machines with a rather rough surface finish that may require additional finishing techniques like sandblasting, polishing, or machining. When using Selective Laser Melting (SLM) or Direct Metal Laser Sintering (DMLS), the printed parts frequently have supporting structures in place to stop warping or distortion during the printing process. Consequently, it is imperative that these support structures be removed with caution, ideally using a machine or other comparable method. Finally, a comprehensive quality control examination is carried out. Verification of dimensions, surface roughness, and material qualities is the goal of this inspection, which is usually accomplished by non-destructive testing such as CT scanning, coordinate measuring devices, or microscopy. Post-processing is a very labor-intensive but necessary stage of manufacturing, even if it greatly increases the overall cost and lead time of the produced part when using PBF 3D printing.
What are the Applications of PBF?
The range of applications for powder bed fusion technology is growing along with its versatility. PBF is essential to industries requiring a high degree of intricacy and precision. Here's a quick look at some areas where PBF really shines.
Aerospace & Aviation: PBF, especially LPBF and EBM technologies, are beneficial to these industries since they require lightweight, high-strength, and complex geometrical components. PBF is revolutionary because it can create complex air and cooling channels in turbine blades.
Automotive: Because SLS can handle strong thermoplastic materials without the need for extra support structures, it is used in tooling, prototyping, and end-use part production. SLS allows for customization and agile design shifts.
Healthcare & Dental: PBF is used in the healthcare sector to create functional organs for transplantation as well as bespoke prosthetics and implants. PBF technology is used in the dentistry field to create molds for crowns, bridges, and different orthodontic equipment.
Industrial Tooling: PBF technologies are repurposing classic manufacturing operations across a wide range of sectors by making it possible to fabricate intricate tools, jigs, and fixtures that were previously difficult or impossible to manufacture.
Current Challenges and Research Frontiers of PBF technology
Presently, Powder Bed Fusion (PBF) technology is confronted with several obstacles that are pushing the frontiers of investigation. Assurance of quality and reproducibility of the process are two of the main obstacles to PBF's industrial introduction. Attaining consistent and repeatable outcomes is a difficult endeavor since various parameters, including particle size distribution, powder bed density, energy source stability, and temperature history, can considerably influence the final product attributes. Furthermore, a thorough grasp of the dynamics of the process pertaining to laser-material interactions, powder spreading properties, and multi-scale heat transfer is lacking, which may lead to the end product having flaws including porosity, residual stress, and anisotropy.
The creation of instruments and methods that enable in situ and real-time monitoring to guarantee improved process accuracy and dependability is at the forefront of PBF technology research. In order to record, evaluate, and display the complex dynamics that occur during the PBF process, machine learning methods and high-speed imaging devices are being investigated. This will allow predictive modeling of the system for improved process control. In order to increase the number of applications for PBF technology, another important area of research is the investigation of a larger range of material compatibility, particularly high entropy alloys and functionally graded materials. Researchers are attempting to solve the difficulty of elucidating the links between processing, structure, and properties for these novel materials, which will unavoidably drive materials science into multidisciplinary areas like computational materials science and data-centric materials study.
