Rapid Tooling Services

Rapid tooling is an alternative approach to traditional tool making that allows for faster and more cost-effective production, especially for low-volume manufacturing.

Your 24/7 Instant Quote:
Start a new injection molding quote

STEP | STP | STL | IGS | 3MF | OBJ | X_T | SLDPRT | 3DXML
Upload Your Files
All uploads are secure and confidential.

What is
Rapid Tooling

Rapid tooling revolutionizes manufacturing by allowing for the rapid and cost-efficient production of essential tools, molds, and dies across various industries. While conventional tooling typically relies on time-intensive and costly processes like machining and metal casting, rapid tooling takes advantage of cutting-edge technologies like 3D printing, CNC machining, and additive manufacturing. These advancements significantly reduce production time and expenses. This method is especially beneficial for low to medium-volume production, where the need for speed and flexibility is paramount, and the high costs and long timelines of traditional techniques are less feasible.

Incorporating rapid tooling into the product development process allows manufacturers to quickly iterate and refine designs, validate material selections, and accelerate the time to market. This approach makes it possible to use production-grade materials for evaluating how parts will perform in real-world scenarios, leading to higher-quality results. Additionally, rapid tooling provides the flexibility to create custom or limited runs of end-use parts, which would be cost-prohibitive with traditional methods. This capability not only speeds up product development but also enables manufacturers to test the market, expand their product offerings, and better meet specific customer demands.

Rapid Tooling with Metal 3D Printing

Rapid tooling with 3D printing technology, specifically Selective Laser Melting (SLM), provides considerable manufacturing advantages. SLM allows for the direct production of complicated, high-precision tools and molds from digital designs, lowering lead times and prices significantly. This technology is particularly useful for low to medium-volume production, where standard tooling methods may be prohibitively expensive or time-consuming. Rapid tooling with SLM enables quick design iterations and material testing, which improves product development efficiency. Applications include automotive, aerospace, and medical equipment, many of which require bespoke or sophisticated tools for particular manufacturing processes.

Rapid Tooling with 3D Printing

Injection molding parts and tools

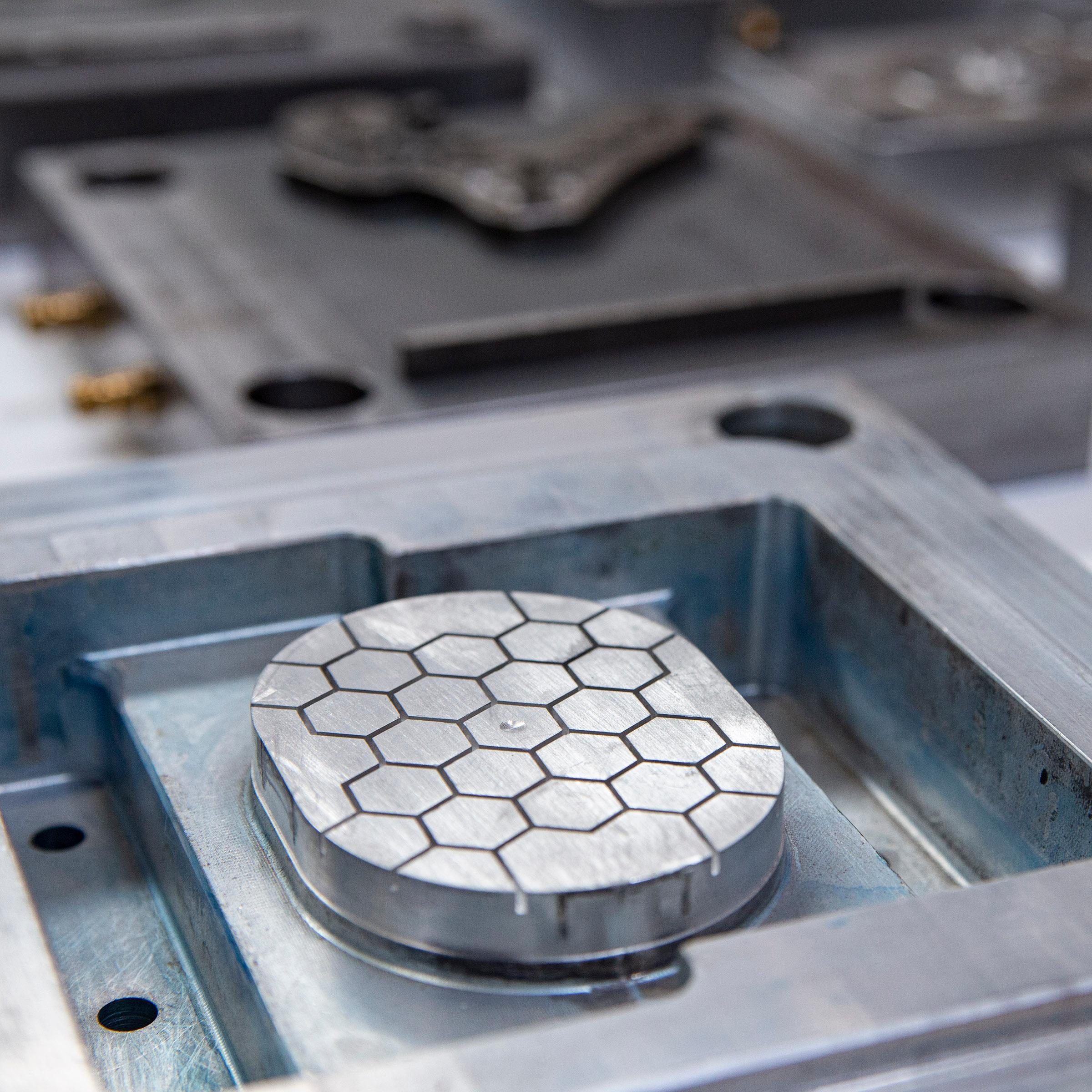

The application of rapid tooling is increasingly used to produce parts in injection molding and die casting, providing a faster and less expensive alternative to traditional processes. Manufacturers can swiftly test and enhance ideas by generating prototype molds and dies using sophisticated techniques such as 3D printing or CNC machining before moving forward with full-scale production. This approach is especially useful for low to medium-volume runs, when traditional tooling would be prohibitively expensive and time-consuming. Rapid tooling allows for faster market entrance, greater design flexibility, and shorter development cycles, making it excellent for businesses that require precision and efficiency in creating complex or bespoke parts.

Injection molding parts and tools
Rapid Tooling with CNC Machining

Rapid Tooling with CNC Machining

Rapid tooling is an efficient process for creating precise tools and prototypes, with CNC machining being a key method. CNC machining swiftly turns digital designs into physical components with tight tolerances, making it ideal for both low and medium-volume production. While 3D printed tooling excels in complex shapes and rapid iteration, machined tooling from soft materials is often more efficient for simpler, large-format designs. For durable, low to mid-volume production, such as injection molding, aluminum tooling is preferred due to its robustness.

Advantages of rapid tooling in industrial applications

Lower Cost

Rapid tooling is more cost-effective than traditional methods as it reduces the need for expensive molds and lengthy processes. 3D printing creates complex shapes with minimal material use, resulting in lower costs, less waste, and fewer rejects.

Speed

The ability to quickly produce and test tooling reduces overall development time, accelerating the process from concept to final product and allowing for faster market responsiveness.

Flexibility

Rapid tooling enhances manufacturing flexibility by allowing quick updates to molds and tools. New designs can be loaded into a 3D printer, and adjustments or refinements are made swiftly without incurring extra costs or delays.

2D/3D Drawing

Rapid tool excels in producing complex geometries and intricate features with 3D printing. Its 3D layering process effortlessly creates detailed shapes and integrates optimized cooling channels, enhancing cooling performance and reducing cycle times.

Get in touch with us and start project right now !

Your 24/7 Instant Quote
Upload files online or send us email.

Rapid tooling vs rapid prototyping, what's the differences

Rapid tooling and rapid prototyping are advanced manufacturing techniques that cater to different stages of product development. Rapid tooling focuses on the quick and cost-effective creation of functional tools, molds, and dies. It is typically employed in low to medium-volume production and emphasizes durability and precision for producing end-use parts. This technique uses methods like CNC machining and 3D printing to deliver high-quality, final tools that may include optimized features such as cooling channels for efficient manufacturing.

In contrast, rapid prototyping is aimed at swiftly creating scale models or prototypes of parts and assemblies using three-dimensional computer-aided design (CAD) data. This technique, often associated with additive manufacturing and 3D printing, is essential for testing and validating design concepts before moving to production. While rapid prototyping helps visualize and iterate on designs, rapid tooling bridges the gap between prototypes and production by creating the actual molds and dies needed for manufacturing final parts.
