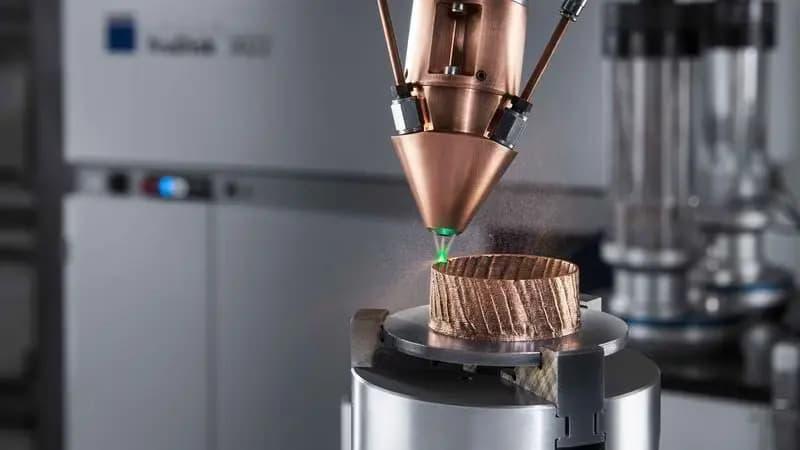

Directed energy deposition (DED) is one of the most significant advancements in metal additive manufacturing today. The technology uses energy sources like lasers, electron beams, or plasma arcs to melt metal powders or wires. These materials are then deposited onto a substrate layer by layer, creating complex three-dimensional structures with precision. DED's high efficiency and flexibility are key drivers behind its adoption, as it opens up new avenues for industrial upgrading and product competitiveness. As the technology matures, it promises to usher in an era of smarter, greener manufacturing.
In the realm of metal additive manufacturing, DED 3D printing is critical for industrial applications. It enables the efficient creation of complex geometries and high-performance metal parts, speeding up product development and lowering production costs. At the same time, DED technology promotes material utilization and minimizes waste, supporting sustainable development. In high-end manufacturing industries, DED 3D printing has spurred innovation, helping companies improve the productivity.
How DED 3D Printing Works

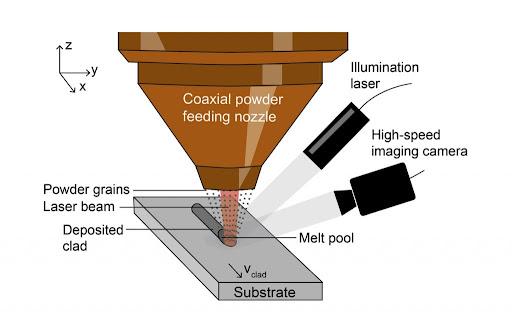

The basic principle behind DED 3D printing is simple yet effective. A high-energy beam—whether a laser, electron beam, or plasma arc—heats metal powder or wire to a molten state. This material is then deposited with precision on the substrate. As the beam moves along a predefined path, the material solidifies, layer by layer, until a three-dimensional structure takes shape. The speed and flexibility of this process are remarkable, allowing manufacturers to build complex metal parts without the need for molds or other tools.
DED technology is particularly efficient at creating intricate designs that would be challenging to produce using traditional methods. The energy beam not only melts the material but also ensures that each layer is accurately positioned and shaped. This level of control makes DED an innovative force in modern manufacturing.
Comparing DED to PBF 3D Printing
While DED and powder bed fusion (PBF) are both additive manufacturing technologies, they differ significantly in their approach. DED employs a high-energy beam to directly deposit metal powder or wire onto a surface, whereas PBF selectively melts powder on a bed to build parts layer by layer.
DED is generally faster and better suited for larger parts, while PBF requires a controlled environment to avoid contamination or oxidation. This gives DED an edge in flexibility and adaptability, especially when working with large or complex structures.
Another key distinction is in material utilization. DED minimizes waste by depositing material directly onto the substrate, though it may require more post-processing to achieve the desired surface quality. PBF, on the other hand, faces challenges in recovering and reusing powder, making DED more efficient in some contexts.

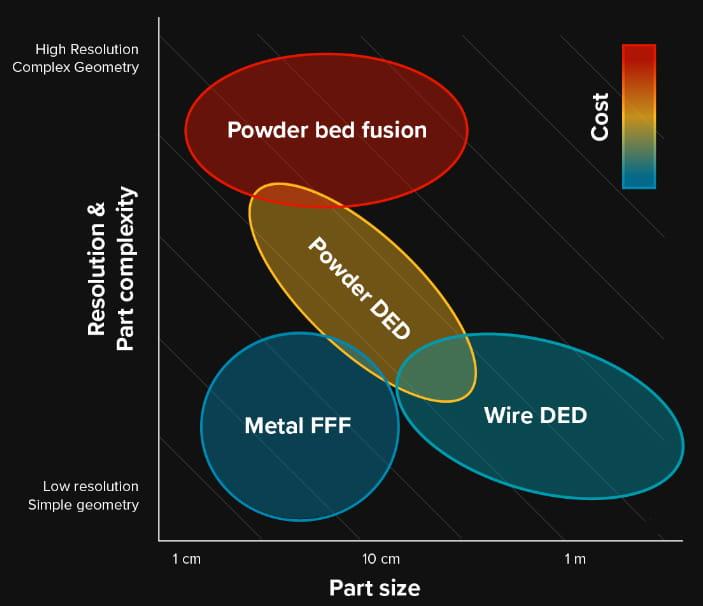

Resolution vs Part size for different metal AM processes. Based on the figure by DigitalAlloys
Materials Suitable for DED 3D Printing
DED 3D printing is highly adaptable in terms of material usage. The most common materials include metals like stainless steel, aluminum alloys, and titanium alloys, which are frequently used in industries such as aerospace, automotive, and medical devices. The ability to control material deposition with precision makes DED an ideal solution for manufacturing high-performance parts.
Beyond metals, DED is also effective with ceramics and composite materials. Ceramics, known for their hardness, wear resistance, and chemical stability, are often used in high-temperature and wear-resistant applications. Composite materials benefit from DED's ability to combine multiple materials during the printing process, resulting in new materials with superior performance. This flexibility allows DED to be employed in various fields, from industrial manufacturing to research and development.
4 Common Types of DED Processes
Laser Metal Deposition (LMD)
This method uses a laser as the energy source to melt metal powder as it is delivered through a nozzle. The precision of the laser beam allows for accurate control of material deposition. While LMD offers high precision and low heat input, its deposition rate is slower compared to other DED processes.
Electron Beam Additive Manufacturing (EBAM)
EBAM employs an electron beam as the energy source. This technique operates in a vacuum, which increases the efficiency of material deposition. However, the equipment required for this process is expensive and complex, limiting its accessibility to high-end applications.
Wire Laser Additive Manufacturing (WLAM)
In WLAM, metal wire is fed into a laser-generated molten pool. The wire is melted and deposited layer by layer, enabling high precision and uniform heating. This process is effective for producing high-quality metal parts, although it requires sophisticated equipment.
Wire Arc Additive Manufacturing (WAAM)
WAAM utilizes arc welding technology to melt and deposit metal wire. The process is relatively inexpensive and offers a high deposition rate, but the lower energy density of the arc can result in lower precision and surface quality.
Advantages of DED 3D Printing
1. Material Adaptability
DED is compatible with a wide range of materials, including metals, ceramics, and composites. This adaptability makes it a versatile solution for various industries, from aerospace to medical devices.
2. High Printing Speed
The efficiency of DED lies in its ability to rapidly deposit material using high-energy beams. This reduces production time and boosts efficiency, particularly in mass production scenarios.
3. Large-Scale Manufacturing
DED is capable of printing large parts, often covering several meters in size. This makes it an ideal choice for industries that require the production of large metal structures, such as aerospace and shipbuilding.
4. Material Utilization
DED 3d printing minimizes material waste, helping manufacturers achieve cost-effective and environmentally friendly production.
Disadvantages of DED 3D Printing
1. Surface Quality
DED layer-by-layer approach can result in uneven surfaces, requiring post-processing such as grinding or polishing. This adds to the overall production time and cost.
2. Precision Challenges
Achieving high precision with DED can be difficult due to the complexity of managing high-temperature materials and energy sources. Factors like material fluidity and beam stability can affect the final product.
3. High Equipment Costs
The equipment needed for DED, such as lasers and electron beams, is expensive to purchase and maintain. This limits the accessibility to smaller manufacturers.
4. Material Waste and Recycling
Despite its high material utilization, some material waste is inevitable during the DED process. Managing and recycling this waste is a challenge that must be addressed to maintain sustainable practices.
5. Complex Process Parameters
The DED process involves a variety of parameters that must be carefully controlled, including heat source power, scanning speed, and material feed rate. Optimizing these variables can require significant time and resources.
The Future of DED 3D Printing
DED 3D printing is poised for a bright future, with expanding applications across industries. In aerospace, DED can produce lightweight and durable components, helping to reduce fuel costs and improve efficiency. In the medical field, DED enables the customization of implants and prosthetics, tailored to the specific needs of patients. The energy sector can also benefit from DED's ability to manufacture high-efficiency components for energy conversion and storage.
As material science advances, DED will continue to evolve. New materials with enhanced properties—such as higher strength, better corrosion resistance, and specialized functionalities like biocompatibility—will be developed. These innovations will further expand DED's role in sectors such as aerospace, automotive, and medical. Moreover, improvements in DED technology will likely increase printing speed and precision while reducing costs. As equipment becomes more affordable and easier to operate, DED will become more accessible to a wider range of industries. Integration with artificial intelligence and data analytics will further optimize production, making DED a cornerstone of the smart manufacturing revolution.
Conclusion
Directed Energy Deposition (DED) 3D printing is revolutionizing metal additive manufacturing. Its flexibility, efficiency, and precision make it a powerful tool for industries ranging from aerospace to medicine. While there are challenges to overcome, such as equipment costs and surface quality issues, the benefits of DED far outweigh its limitations. As the technology continues to advance, DED will play an increasingly important role in shaping the future of manufacturing.
